Product Description

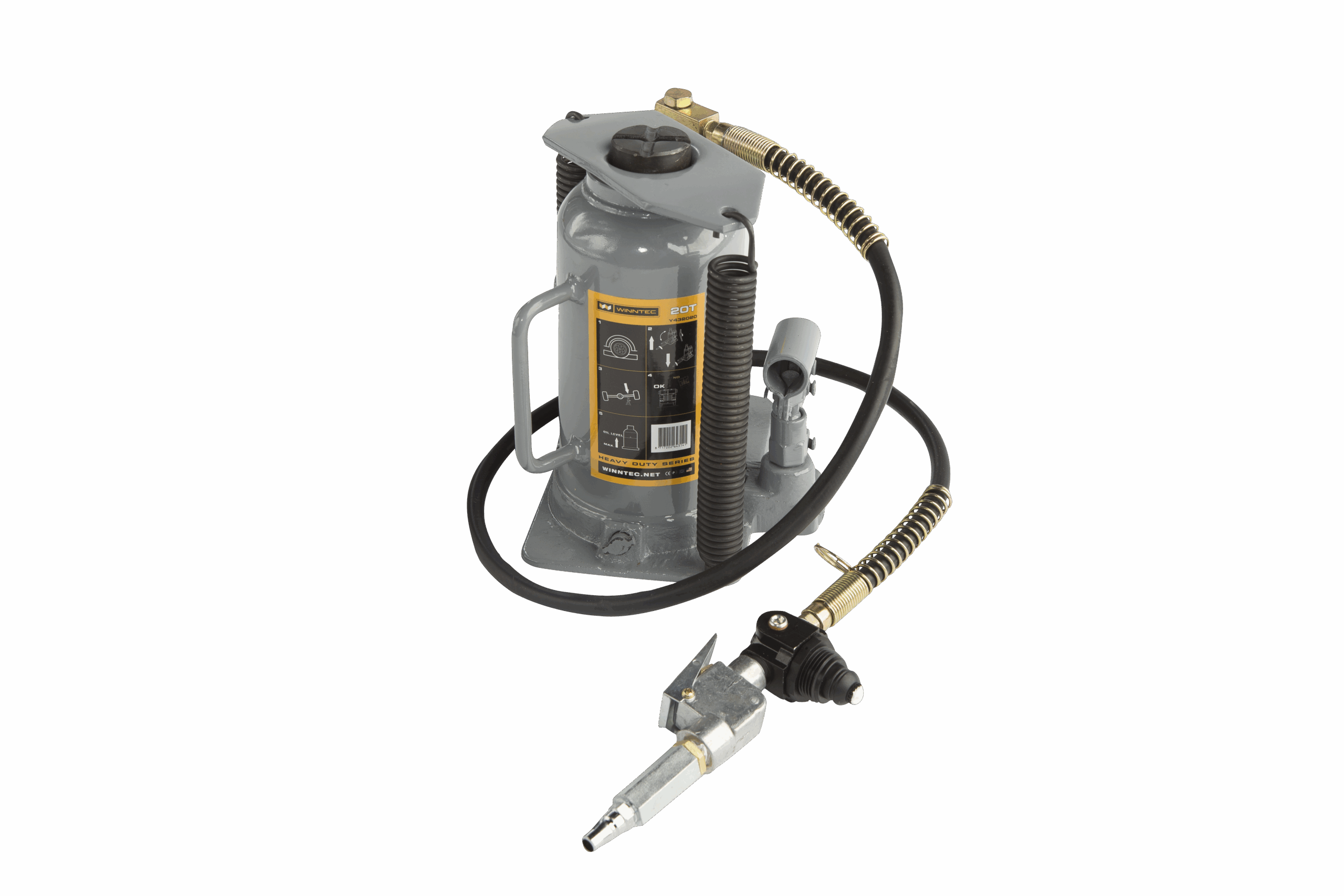

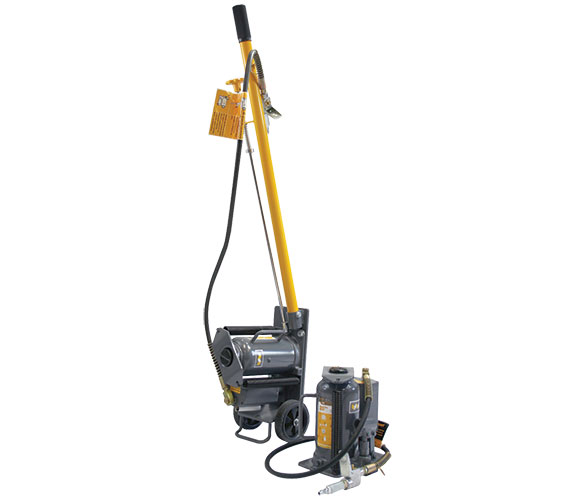

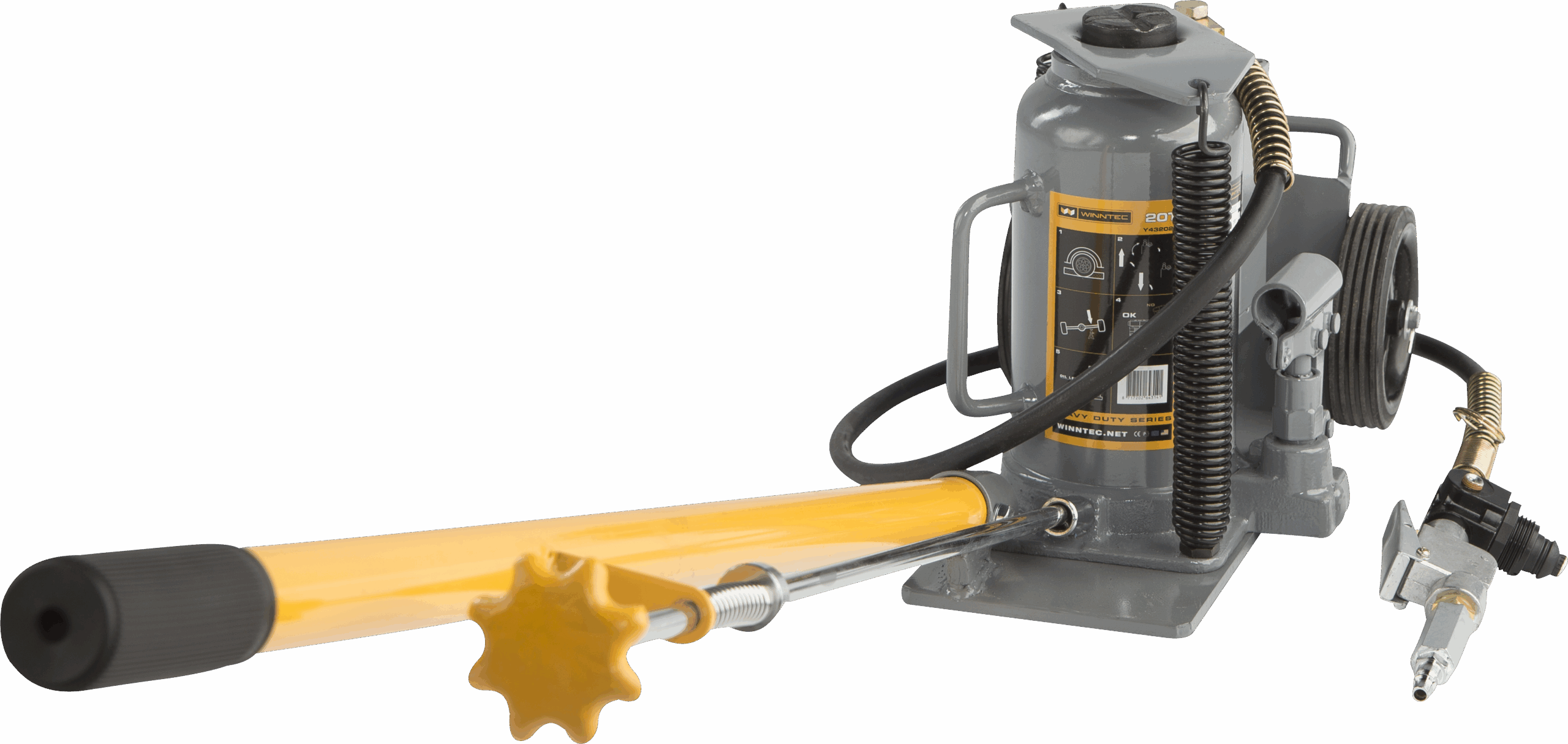

These Winntec 20 Ton capacity Air/Manual Bottle Jacks are among the toughest in the market. Each comes equipped with an air regulator, a chrome ram and welded base so that these jacks will keep on working no matter the job.
Each unit is also hand-tested before shipping to guarantee maximum reliability.
Download product information (Y432003).
Download product information (Y432020).
GAITHER JACK MAINTENANCE troubleshooting steps and video on maintenance tips.
Specifications
| Model | Cap U.S./Met. | Min h. in/mm | Max h. in/mm | Hydr Stroke in/mm | Ext. Screw in/mm | Length in/mm | Width in/mm | G.W. lbs/kg | N.W. lbs/kg |
| Y432020 | 22 t/20 | 10/245 | 18.5/470 | 5.71/145 | 3.15/80 | 8.31/220 | 6.88/176 | 38/17.3 | 36.3/16.5 |
| Y432003 | 22 t/20 | 10.04/255 | 18.9/480 | 5.71/145 | 3.15/80 | 16.54/420 | 5.91/150 | 59.5/27 | 56.6/25.7 |
