Close-up of Winntec professional garage jack body with lifting saddle and wheels

Winntec Garage Jacks

$456.05 - $518.62
SKU:
Y420303, Y420333R, Y420337US

Product Description

Winntec’s Garage Jacks are built from quality materials and loaded with features to increase the durability and efficiency of each unit.

  • The pump pistons are placed at a 45° angle so a complete pumping stroke will always be utilized.
  • The professional universal joint release valve makes it possible to lower the jack with a load very precisely and safely.
  • Every model comes equipped with a handle protector.

Download product information 420225, 420303, 422500, 420250, 420300, 420302, 420330, 420333R, 420337US

Not all models are available in all markets.



Specifications

Model Cap U.S./Met. Min h. in/mm Max h. in/mm Length in/mm Width in/mm G.W. lbs/kg N.W. lbs/kg
Y420337US 4 t/3.7 4.13/105 20.47/520 30.35/771 15.15/365 103.6/47 99.2/45
Y420333R 3.3 t/3 3/76 19.80/503 26.5/673 13.6/345 82.7/37.5 78.3/35.5

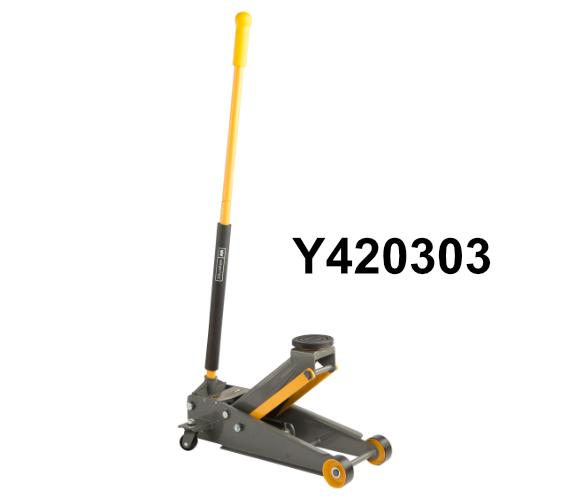

Y420303 3.3 t/3 5.12/130 19.29/490 31.30/795 15.16/385 94.7/43 90.3/41

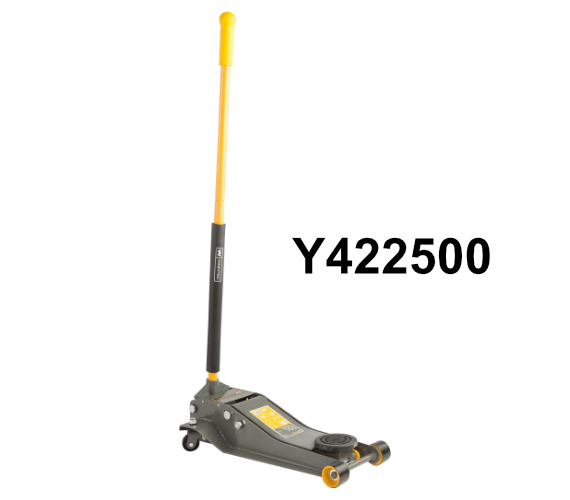

Y422500 2.75 t/2.5 3.35/85 18.31/465 30.71/780 15.35/390 106.9/48.5 103.6/47

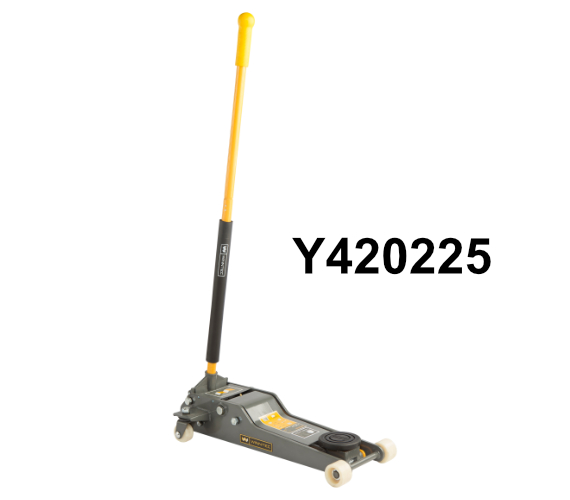

Y420225 2.5 t/2.25 3.54/90 20.28/515 33.46/850 15.75/400 123.4/56 119/54

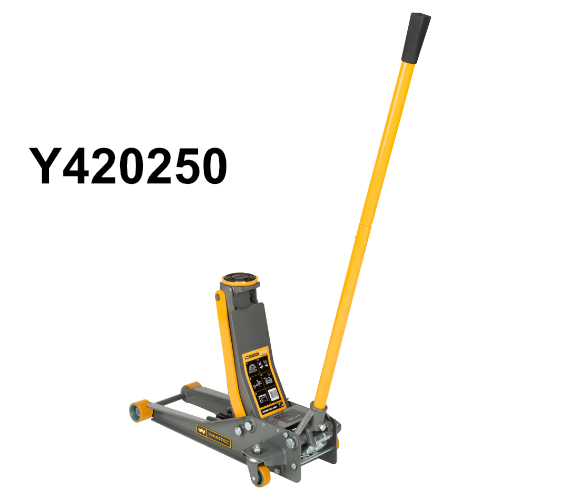

Y420250 2.2 t/2 2.95/75 20.08/510 27.01/686 13.5/343 74.96/34 70.55/32



Winntec Garage Jacks FAQs

What lift capacities are available in the Winntec Garage Jack range?

The Winntec Garage Jack range includes models rated from 2.2 tons up to 4 tons, with options at 2.2, 2.5, 2.75, 3.3, and 4 tons. Choosing the right capacity starts with the vehicle weight, and the intended service work.

Can Winntec Garage Jacks work with low-clearance vehicles?

Several models are designed with a low starting height to help with low-clearance service. Examples include minimum heights of 2.95 inches on the Y420250, 3.00 inches on the Y420333R, and 3.35 inches on the Y422500, so checking lift-point clearance is an important first step.

What warranty coverage comes with Winntec Garage Jacks?

Warranty terms include 1 year of coverage against defects in workmanship and materials.

Are replacement parts available for Winntec Garage Jacks?

Replacement parts are available for selected Winntec Garage Jack models, including components such as saddles, saddle pads, and power unit assemblies. Since fitment is model-specific, the correct part should be matched to the exact model number before purchase or repair.
