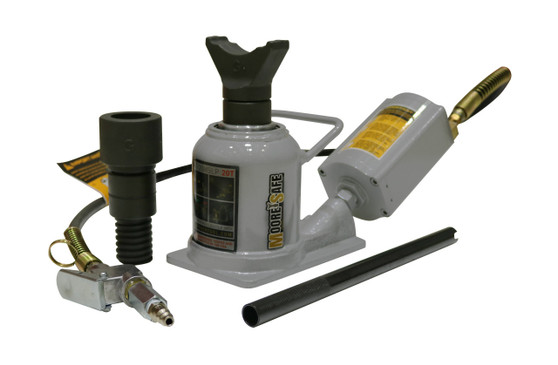

Moore Safe low profile 20 ton air bottle jack with the Y head attached and the round head set beside it on a white background. The product photo also shows the air motor assembly extension bar and control fitting with the text "MOORE SAFE" visible on the jack body.

Moore-Safe Low-Profile 20 Ton Air Bottle Jack

$548.06
SKU:
GT-20MSLP

Product Description

Jacks have long been a source of workplace accidents and injuries. The threat of damage and bodily harm from falling multi-ton vehicles is all too real, as any experienced tech knows.

To combat this common problem, we have developed a jack that is far more stable and reliable than the competition. The Moore-Safe Jack is designed to securely cradle vehicle components, dramatically reducing the chance of slippage due to misplacement or a shifting load. This revolutionary jack is now available in a smaller version to tackle any job.

The Moore-Safe's patented design features two interchangeable mounting heads. A "Y" Head for round and square surfaces as well as a "Round" Head that can cradle U-bolts and provide a wide footprint for flat surfaces. Both were engineered to maintain the center of gravity even in the event of a shifting load, guaranteeing maximum safety even in the least ideal circumstances.

Each unit is also hand-tested before shipping to guarantee maximum reliability.

  • Comes with 2 interchangeable adaptor heads
  • Maintains the center of gravity while lifting
  • Dramatically reduces the chance of vehicle drops
  • Makes jack positioning easy
  • 20 Ton Lifting Capacity
  • Low Profile

(Included in box: Moore-Safe Jack, Y Head, Round Head, Head Holder)

Download product information

GAITHER JACK MAINTENANCE troubleshooting steps and video on maintenance tips.





Specifications

Model Cap U.S./Met.  Min h. in/mm Max h. in/mm Hydr Stroke in/mm G.W.  lbs/kg N.W. lbs/kg
GT-20MSLP 22 t/20 7.375/187.33 11.75/298.45 5.71/145 28/12.7 26.6/12.07



When should you choose the Moore-Safe Low-Profile 20 Ton Air Bottle Jack instead of the standard Moore-Safe jack?

Choose the low-profile GT-20MSLP when you need to get under a lower-clearance lift point. Gaither lists the low-profile model with a 7.375 in. minimum height and 11.75 in. maximum height, while the standard GT-20MS starts at 11 in. and reaches 19 in., so the low-profile version is the better fit when access is tighter and the standard model is the better fit when you have more starting clearance and need more lift height.

How do the interchangeable heads on the Moore-Safe Low-Profile jack work?

The GT-20MSLP comes with two interchangeable adaptor heads so you can match the contact point to the job. The Y Head is for round and square surfaces, while the Round Head can cradle U-bolts and provide a wider footprint on flat surfaces; both were designed to help maintain the center of gravity if the load shifts.

What is the Round Head used for on the Moore-Safe Low-Profile 20 Ton Air Bottle Jack?

Use the Round Head when you need to cradle U-bolts or create a broader contact area on flatter surfaces. The head is designed for U-bolt cradling and wider-footprint support, which is one of the key differences between this jack and a standard bottle jack saddle.

Where can you find instructions or maintenance information for the Moore-Safe Low-Profile 20 Ton Air Bottle Jack?

Start on the product page, which includes a downloadable product information file plus a maintenance PDF and video. You can also visit the Support page for additional resources. Gaither’s maintenance document also names GT-20MSLP directly and includes service notes such as lubricating the air motor biweekly and checking the hose assembly and oil level.

Where can you find replacement parts and schematics for the Moore-Safe Low-Profile 20 Ton Air Bottle Jack?

Gaither surfaces both through its site navigation and replacement parts listings. Under Support, the site includes a Product Schematics section, and the replacement parts page lists compatible components such as the Moore-Safe Adaptors and Holder and the Air Motor Assembly.
