Product Description

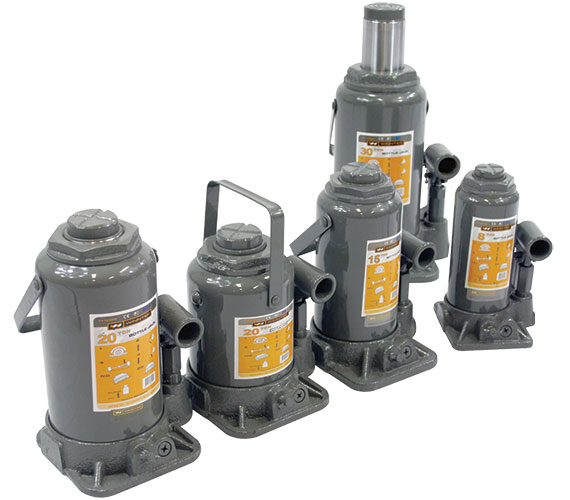

These Winntec Bottle Jacks meet the highest standards. All models have a chrome main ram and a chrome pump piston. The extension screws have a pressed thread. These units can be used horizontally and vertically.
Download product information.
Specifications
| Model | Cap U.S./Met. | Min h. in/mm | Max h. in/mm | Hydr Stroke in/mm | Ext. Screw in/mm | Length in/mm | Width in/mm | G.W. lbs/kg | N.W. lbs/kg |
| Y410200 | 2.2 t/2 | 6.22/158 | 11.73/298 | 3.54/90 | 1.97/50 | 3.54/90 | 3.62/92 | 5.7/2.6 | 4.8/2.2 |
| Y410400 | 4.4 t/4 | 7.68/195 | 14.57/370 | 4.92/125 | 1.97/50 | 3.98/101 | 4.33/110 | 8.6/3.9 | 7.7/3.5 |
| Y410600 | 6.6 t/6 | 7.87/200 | 14.76/375 | 4.92/125 | 1.97/50 | 4.4/112 | 4.53/115 | 10.1/4.6 | 9.4/4.3 |
| Y410800 | 8.8 t/8 | 9.06/230 | 17.99/457 | 5.75/146 | 3.19/81 | 4.72/120 | 4.76/121 | 15.2/6.9 | 13.9/6.35 |
| Y411500 | 16.5 t/15 | 9.84/250 | 19.29/490 | 6.3/160 | 3.15/80 | 5.43/138 | 5.55/141 | 21.6/9.8 | 20.8/9.45 |
| Y412000 | 22 t/20 | 9.53/242 | 18.58/472 | 5.9/150 | 3.15/80 | 5.91/150 | 6.26/159 | 22.45/11.15 | 23.7/10.75 |
| Y412001 | 22 t/20 | 6.61/168 | 11.22/285 | 3.03/77 | 1.57/40 | 5.91/150 | 6.26/159 | 20/9.1 | 19.1/8.7 |
| Y413000 | 33 t/30 | 9.53/242 | 18.39/467 | 5.91/150 | 2.95/75 | 6.85/174 | 8.15/207 | 35.7/16.2 | 34.8/15.8 |
